Toro Grandstand 48" Rear Discharge 72542TE

Toro Grandstand 48" Rear Discharge 72542TE Get productive with fewer stops for fuel with this Toro GrandStand® Stand-on Mower. The 38-liter fuel capacity gives you plenty of work time between fill-ups, and the transparent tank makes it easy to gauge the fuel level. The wide 122cm cutting deck makes quick work of large areas, and the Kawasaki® FX691V engine delivers plenty of power. With a rugged TURBO FORCE® cutting deck and adjustable cutting heights, the mower is built to handle the daily challenges of commercial mowing.

The riding platform has a self-adjusting suspension and sloped sides for a more secure stance when cutting sloped terrain. The platform also folds up so you can use the mower as a walk behind as well as reduce the footprint to save room on your trailer. The exceptional visibility makes it easy to steer clear of obstacles and pass beneath branches. Toro's foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.

Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load. Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches. Easier Maintenance - Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.

Specifications

Air Filter	Heavy-duty canister air cleaner
Anti Scalp Wheels	Optional
Blade Tip Speed	5,638 m/min
Blades	.5 cm (.204") Heat-Treated Steel
Carrier Frame	7.6 cm x 3.8 cm x 12 gauge (3" x 1.5" x 12 gauge)
Caster Tires	28 x 13-13 cm (11" x 5"-5") flat free semi-pneumatic
Clutch	Electromagnetic
Comfort Platform	Foldable Operator Platform with Suspension
Controls	Twin lever
Cutting Width	122 cm
Deck Design	80-grade 7-gauge 122 cm (48") TURBO FORCE® w/bull-nose bumper
Deck Material	8 Gauge Steel
Discharge Chute	Rubber
Drive System	Unitized Pumps 10cc rev Wheel Motors 10 cir
Drive Tires	20" x 10.5"- 8" (51 x 26.67 - 20 cm)
Engine	16.4 kw (22 hp) Kawasaki FX691V 726cc
Engine Brand	Kawasaki
Engine Displacement (cc)	726 cc
Engine Horsepower	22.0 hp
Engine Power (kW)	16.4 kW
Forward Ground/Transport Speed	Up to 16.0 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	39.7 L
Fuel Type	Gasoline
Height of Cut	3.8 - 12.7 cm
Hour Meter	Standard Hour Meter
Hydraulic Fluid	Premium synthetic
Mower Type	Stand On Mower
Number of Blades	3
Product Use	Commercial
Spindle Bearings	Maintenance-free
Spindle Housing	23.8 cm Diameter Cast Iron
Start Type	Electric
Steering Controls	Twin Lever

Features

2-in-1 Versatility

In situations where the operator may want or need to walk, Toro’s foldable operator platform instantly converts the GrandStand to a walk-behind. When it’s time to ride, just lower it back down – saving time, money and trailer space by eliminating the need to switch from one mower to another.

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximise discharge velocity.

A Flat Crisp Cut with Precision Blades

6.35 mm thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic mulching blades, medium sail Bahai blades, and low sail sand blades.

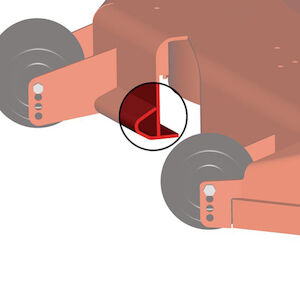

Smarter design in a bull-nose bumper.

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimise blowout of debris and dust. The bottom, leading edge of the deck is raised 6.35 mm, allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf “ploughing” during spring and fall clean-up also is significantly reduced.

25% Faster Speeds

The 10 mph transport speed gets you to your next destination 25% faster.*

Smaller Footprint

With the platform folded, the small footprint allows you to transport more products on the trailer.

Better Visibility

Exceptional operator visibility leads to less property damage and higher quality work.

Easier Maintenance

Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.

Less Maintenance Needed

The elimination of hydraulic hoses, reduced parts, no routine greasing and simplified design, save you time

Comfortable Ride

The platform has self-adjusting suspension, a larger open area to move around, and sloped sides for a more secure stance when cutting sloped terrain.

Ultimate Cutting Deck

Our exclusive TURBO FORCE cutting deck is built to withstand the extreme conditions of long, tough days on the job. It features a durable bull-nose bumper, high-strength blades and the industries toughtest spindle assemblies.

Extra Large Fuel Tank

10.5 gallon fuel tank requires less filling and more time working. Transparent tank make it easy to gauge the fuel level.

Traction On Hills

The low center of gravity of stand-on mowers hug hills and slopes. Operators can easily shift their weight as needed to enhance performance.

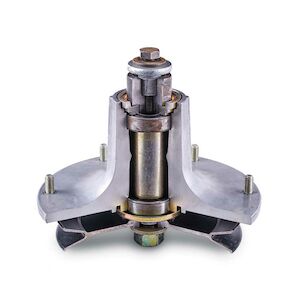

Cast Aluminium Spindle

Cools quickly for enhanced durability and performance.
